Updating the HSP1-I Configuration Files

Where to Find and How to Install Configuration Update Bundles for HSP1-I

Obtaining Configuration Update Bundles

Configuration bundles can be downloaded from the HSP1-I SD Image repository. Only download the filaments.zip, macros.zip, and sys.zip files from the latest release, the other two files are extraneous.

Installing Configuration Update Bundles

The bundle files can then be uploaded to their respective taps in DWC. Upload the zip file directly, it will unzip automatically.

First upload the filaments.zip file to the Filaments tab in DWC.

Once that is complete, upload the macros.zip file to the root directory of the Macros tab.

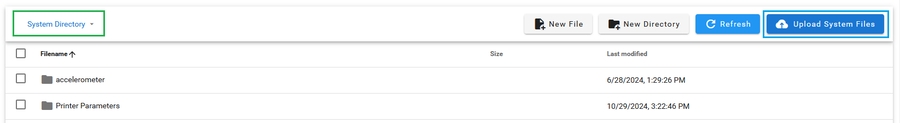

Upload the sys.zip file to the root directory of the System tab. Be sure that the System directory is selected, rather than the Firmware directory, on the System tab.

Once the sys.zip file is uploaded, DWC will prompt a firmware restart. Select "Restart Mainboard" when this pops up to reload with the new configuration.
